Advanced Application Configuration Guide

Advanced Configuration System

Introduction

The Advanced Configuration System provides enterprise-grade control over your application's deployment, scaling, and orchestration capabilities. This comprehensive guide is designed for experienced system administrators and DevOps engineers who need to implement complex configurations and maintain sophisticated deployment architectures within the Hawiyat platform.

Command Execution Framework

Interactive Shell Interface

The Command Execution System provides direct access to container environments, enabling sophisticated debugging and administrative operations:

Command Interface
- Real-time command execution
- Interactive shell access
- Output streaming
- Error handling
Security Controls
- Command validation
- Execution logging
- Access restrictions
- Audit trailing
Usage Guidelines
# Example command structure command [options] <parameters> # Common operations - File system management - Process control - Network diagnostics - System monitoring

Exercise caution when executing commands as they run with container-level privileges and can affect application stability.

Cluster Management System

Architecture Overview

The Cluster Management System provides comprehensive control over application distribution and scaling across your infrastructure:

Scaling Configuration
- Horizontal Scaling
  - Dynamic replica adjustment
  - Load distribution
  - Resource optimization
  - Performance monitoring
- Vertical Scaling
  - Resource allocation
  - Container sizing
  - Performance tuning
  - Capacity planning
Registry Integration
- Registry Management
  - Multiple registry support
  - Authentication handling
  - Image versioning
  - Cache optimization
- Deployment Strategy
  - Image pull policies
  - Version control
  - Rollback support
  - Security scanning
Distribution Control
- Node Assignment
  - Affinity rules
  - Anti-affinity policies
  - Resource constraints
  - Label matching
- Load Balancing
  - Traffic distribution
  - Health checking
  - Failover handling
  - Session persistence

Configuration changes require redeployment to ensure proper propagation across the cluster. Use the 'Redeploy' function after any modifications to apply changes effectively.

Implementation Guidelines

Pre-deployment Checklist
- Verify resource availability
- Check network connectivity
- Validate registry access
- Review security policies
Optimization Strategies
- Resource allocation planning
- Performance monitoring setup
- Scaling threshold configuration
- Backup procedures

Docker Swarm Orchestration

Comprehensive Swarm Management

The Docker Swarm configuration system provides enterprise-grade container orchestration capabilities:

Health Monitoring System

The health monitoring framework ensures continuous application availability through sophisticated monitoring and automated recovery:
- Health Check Implementation
  health_check: test: ["CMD", "curl", "-f", "http://localhost/health"] interval: 30s timeout: 10s retries: 3 start_period: 40s
- Monitoring Parameters
  - Real-time status tracking
  - Performance metrics collection
  - Resource utilization monitoring
  - Error pattern detection
- Automated Recovery
  - Self-healing procedures
  - Graceful container restart
  - Service reconciliation
  - State preservation
Restart Policy Framework

Sophisticated restart management system for maintaining service availability:
- Policy Configuration
  restart_policy: condition: any|on-failure|none delay: 5s max_attempts: 3 window: 120s
- Condition Management
  - Failure detection
  - Exit code analysis
  - State evaluation
  - Resource checking
- Recovery Orchestration
  - Graceful shutdown
  - State preservation
  - Resource cleanup
  - Service restoration

Configure health checks and restart policies based on your application's specific requirements and recovery time objectives (RTO).

Update Management System

The Update Management System provides sophisticated control over service updates and deployments:

Deployment Strategy

Configure comprehensive update behaviors for seamless service transitions:
update_config: parallelism: 2 delay: 10s failure_action: pause monitor: 30s max_failure_ratio: 0.3 order: start-first
- Execution Control
  - Parallel update orchestration
  - Timing optimization
  - Failure handling
  - Progress monitoring
- Risk Mitigation
  - Rolling updates
  - Canary deployments
  - Blue-green deployment support
  - Automatic rollback triggers
Node Placement Strategy

Sophisticated container placement control for optimal resource utilization:
placement: constraints: - node.role == worker - node.labels.zone == production preferences: - spread: node.labels.zone
- Constraint Management
  - Hardware requirements
  - Geographic distribution
  - Security boundaries
  - Resource availability
- Distribution Optimization
  - Load balancing
  - Resource utilization
  - Network topology
  - Failure domain separation

Carefully consider placement constraints as they can affect application availability and performance across the cluster.

Advanced Placement Features

Affinity Rules
- Service co-location
- Anti-affinity policies
- Soft preferences
- Hard constraints
Resource Awareness
- CPU utilization
- Memory availability
- Network topology
- Storage requirements

Service Recovery Framework

Rollback Management System

Sophisticated rollback control system for maintaining service stability:

rollback_config:
  parallelism: 2
  delay: 5s
  failure_action: pause
  monitor: 20s
  max_failure_ratio: 0.2
  order: stop-first

Rollback Strategy
- Execution Control
  - Parallel rollback handling
  - Timing optimization
  - Failure management
  - State monitoring
- Data Preservation
  - State backup
  - Configuration preservation
  - Data integrity
  - Version control
Recovery Procedures
- Automation
  - Trigger conditions
  - Execution steps
  - Validation checks
  - Notification system
- Monitoring
  - Service health
  - Performance metrics
  - Resource usage
  - Error tracking

Service Distribution Architecture

Deployment Modes

Comprehensive service deployment configuration system:

Replicated Services
mode: replicated: replicas: 5
- Scale Management
  - Dynamic scaling
  - Load distribution
  - Resource allocation
  - Performance optimization
Global Services
mode: global: {}
- Distribution Control
  - Node coverage
  - Service availability
  - Resource awareness
  - Automatic scaling
Replicated Jobs
mode: replicated_job: max_concurrent: 2 total_completions: 10
- Execution Control
  - Concurrency management
  - Completion tracking
  - Resource allocation
  - Error handling

Choose the appropriate service mode based on your application's requirements for availability, scalability, and resource utilization.

Implementation Guidelines

Mode Selection Criteria
- Service requirements
- Resource availability
- Scaling needs
- Geographic distribution
Performance Optimization
- Resource allocation
- Network topology
- Load balancing
- Failover planning

Network Configuration Framework

Advanced Network Management

Sophisticated network configuration system for optimal service communication:

networks:
  frontend:
    driver: overlay
    driver_opts:
      com.docker.network.driver.mtu: '1450'
    attachable: true
    labels:
      com.example.description: "Frontend network"
  backend:
    driver: overlay
    internal: true
    ipam:
      config:
        - subnet: "172.20.0.0/16"

Network Architecture
- Topology Design
  - Network segmentation
  - Traffic isolation
  - Access control
  - Performance optimization
- Driver Configuration
  - MTU sizing
  - Overlay networks
  - IPAM settings
  - Security policies
Service Connectivity
- Network Aliases
  networks: backend: aliases: - service.internal - api.backend
- Access Control
  - Network policies
  - Security groups
  - Traffic rules
  - Load balancing

Service Metadata System

Label Management Framework

Comprehensive metadata organization system:

labels:
  com.example.description: "Core API Service"
  com.example.department: "Engineering"
  com.example.environment: "production"
  com.example.version: "2.1.0"

Metadata Strategy
- Organization
  - Service identification
  - Version tracking
  - Environment tagging
  - Department assignment
- Integration
  - Monitoring systems
  - Deployment tools
  - Analytics platforms
  - Management interfaces
Implementation Guidelines
- Naming Conventions
  - Hierarchical structure
  - Consistent formatting
  - Clear descriptions
  - Version schemes
- Usage Patterns
  - Filtering criteria
  - Grouping logic
  - Resource tracking
  - Automation triggers

Well-structured labels are essential for service organization and automation. Follow consistent naming conventions across your infrastructure.

Resource Management Framework

Advanced Resource Configuration

Sophisticated resource control system for optimal performance and stability:

resources:
  limits:
    cpus: '2'
    memory: 4G
  reservations:
    cpus: '1'
    memory: 2G

Resource Allocation Strategy
- CPU Management
  - Processing power distribution
  - Core allocation
  - Thread management
  - Usage monitoring
- Memory Control
  - RAM allocation
  - Swap configuration
  - Cache management
  - OOM protection
Performance Optimization
- Resource Monitoring
  - Usage patterns
  - Bottleneck detection
  - Performance metrics
  - Capacity planning
- Dynamic Adjustment
  - Scaling triggers
  - Resource reallocation
  - Performance tuning
  - Load balancing

Careful resource allocation is critical for application performance and stability. Monitor usage patterns and adjust configurations accordingly.

Implementation Guidelines

Resource Planning
- Application requirements
- Usage patterns
- Growth projections
- Performance targets
Optimization Strategies
- Resource utilization
- Performance tuning
- Scaling policies
- Cost management

Storage Architecture Framework

Advanced Volume Management

Comprehensive storage configuration system for persistent data management:

volumes:
  - type: bind
    source: /host/data
    target: /container/data
  - type: volume
    source: db_data
    target: /var/lib/mysql
  - type: tmpfs
    target: /tmp
    tmpfs:
      size: 1000000

Storage Types
- Bind Mounts
  volumes: - type: bind source: /etc/configs target: /etc/app/configs read_only: true
  - Host path mapping
  - Configuration management
  - Development workflows
  - Direct access patterns
- Named Volumes
  volumes: - type: volume source: app_data target: /data volume: nocopy: true
  - Data persistence
  - Backup management
  - Migration support
  - Performance optimization

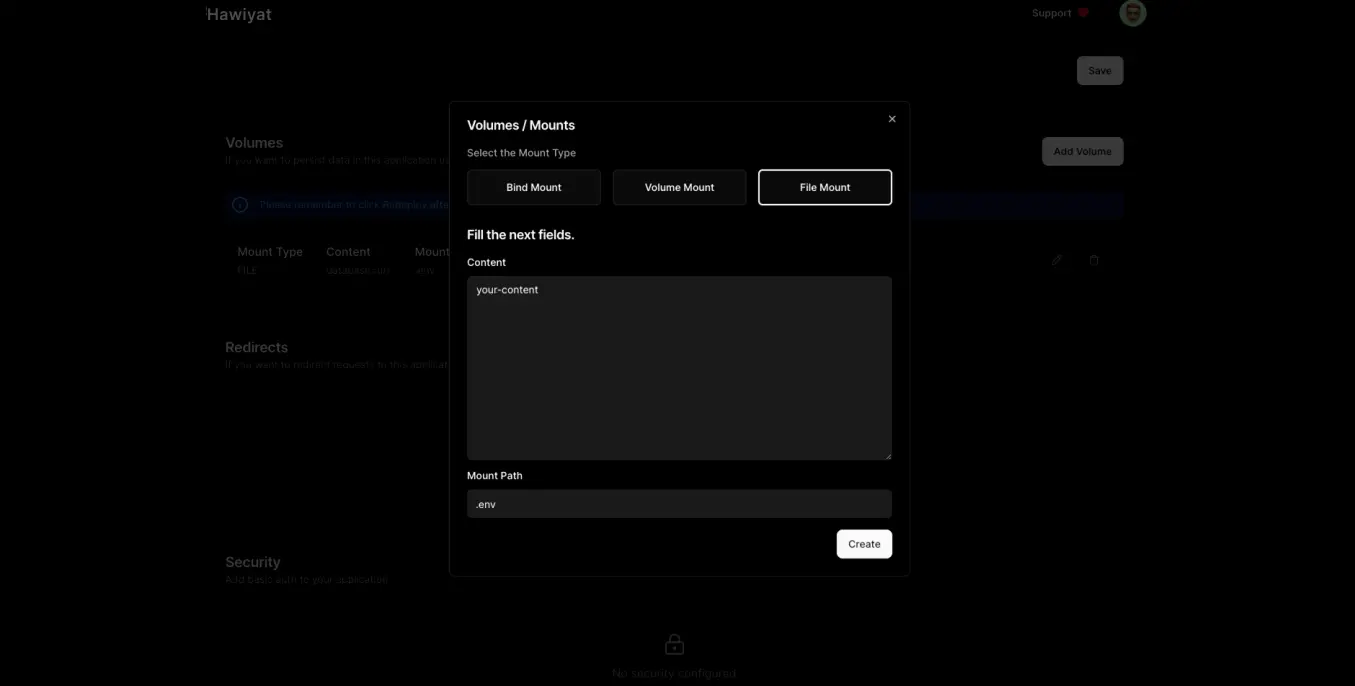

File Mount System

Hawiyat's specialized file mounting feature for dynamic configuration:
file_mounts: - content: | server { listen 80; server_name example.com; } target: /etc/nginx/conf.d/default.conf
- Implementation
  - Configuration files
  - Secret management
  - Runtime parameters
  - Dynamic updates
- Features
  - Automatic recreation
  - Version control
  - Change tracking
  - Deployment integration

File mounts are stored in the files directory of your project and are automatically recreated during deployment, ensuring consistent configuration across your infrastructure.

Storage Management Guidelines

Mount Selection Criteria
- Data persistence requirements
- Performance needs
- Security considerations
- Backup strategies
Implementation Best Practices
- Access permissions
- Backup procedures
- Performance optimization
- Security hardening

Redirects

Redirect requests to your application to another URL based on specified rules, enhancing navigational efficiency and SEO.

Regex: Enter a regular expression to match the URLs that need redirecting.
Replacement: Specify the target URL where traffic should be redirected.
Permanent: Toggle this option to apply a permanent (HTTP 301) redirection, indicating to browsers and search engines that the page has moved permanently.

Example

To redirect all traffic from "http://localhost" to "http://mydomain", set the Regex as http://localhost/(.*) and the Replacement as http://mydomain/$1.

Security

Add basic authentication to your application to restrict access.

Username: Enter a username.
Password: Enter a password.

Important Note

Adding basic authentication will prompt users for a username and password before allowing access to the application. Use this for environments where an additional layer of security is required.

Ports

Expose your application to the internet by configuring network ports, allowing external access.

Published Port: The port number on the host that will route traffic to your application.
Target Port: The port number inside the container that the application uses.
Protocol: Choose between TCP and UDP based on your application's requirements.

Important Note

Ensure that the published port does not conflict with other services on the host to avoid port binding errors, also this port is used mostly for accesing the application from the outside, eg your-ip:port, this is not for accessing the application trought a domain.

Traefik

Provides a dynamic and robust method to manage HTTP traffic to your services, including load balancing and SSL termination.

Rules: Define complex routing, load balancing, and security configurations using Traefik's powerful rule-based configuration system.

Advanced Application Configuration Guide

On this page
